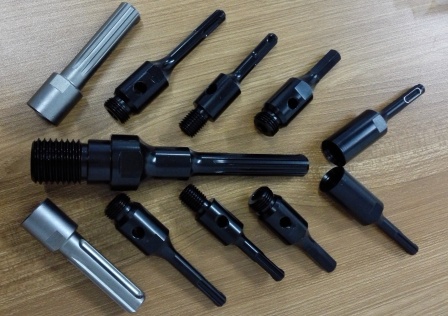

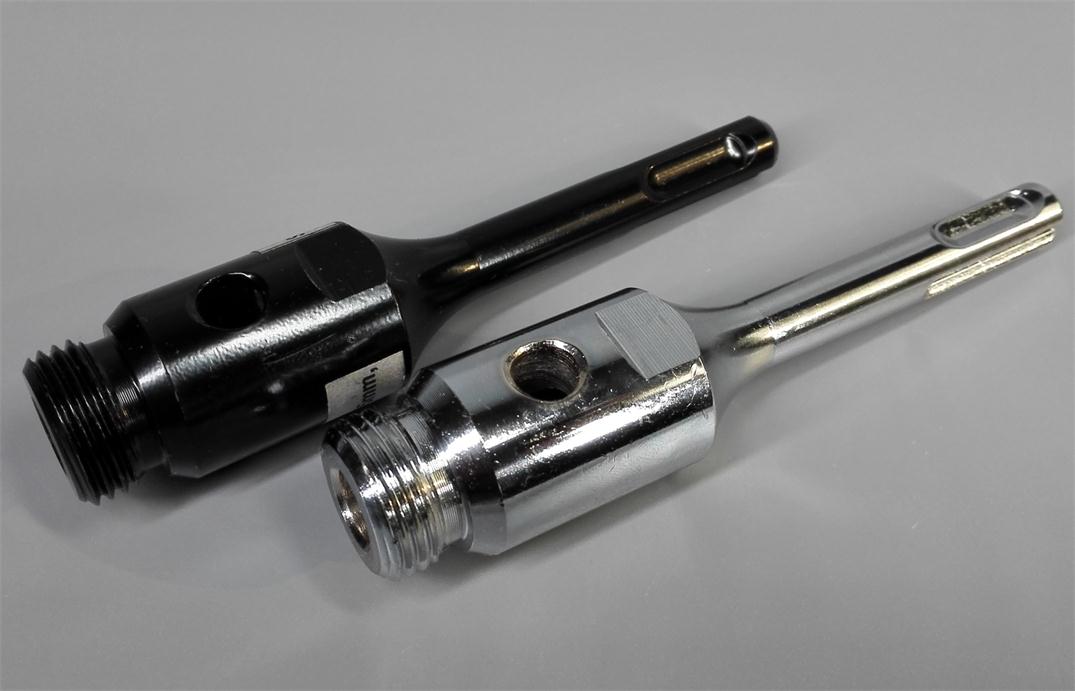

ADAPTOR FOR DRY(QR)
Exchange Adaptors for Dry Coring, Quick Release Type
|
Item Code |
Picture |
From |
To |
Total Length (mm) |
|
R501201+length |
|
SDS Plus |
1/2" BSP |
100/115/120/200/240/ 300/400/500 |
|
R501601+length |
M16 |
|||
|
R501701+length |
M22 |
|||
|
R501801+length |
5/8-11" |
|||
|

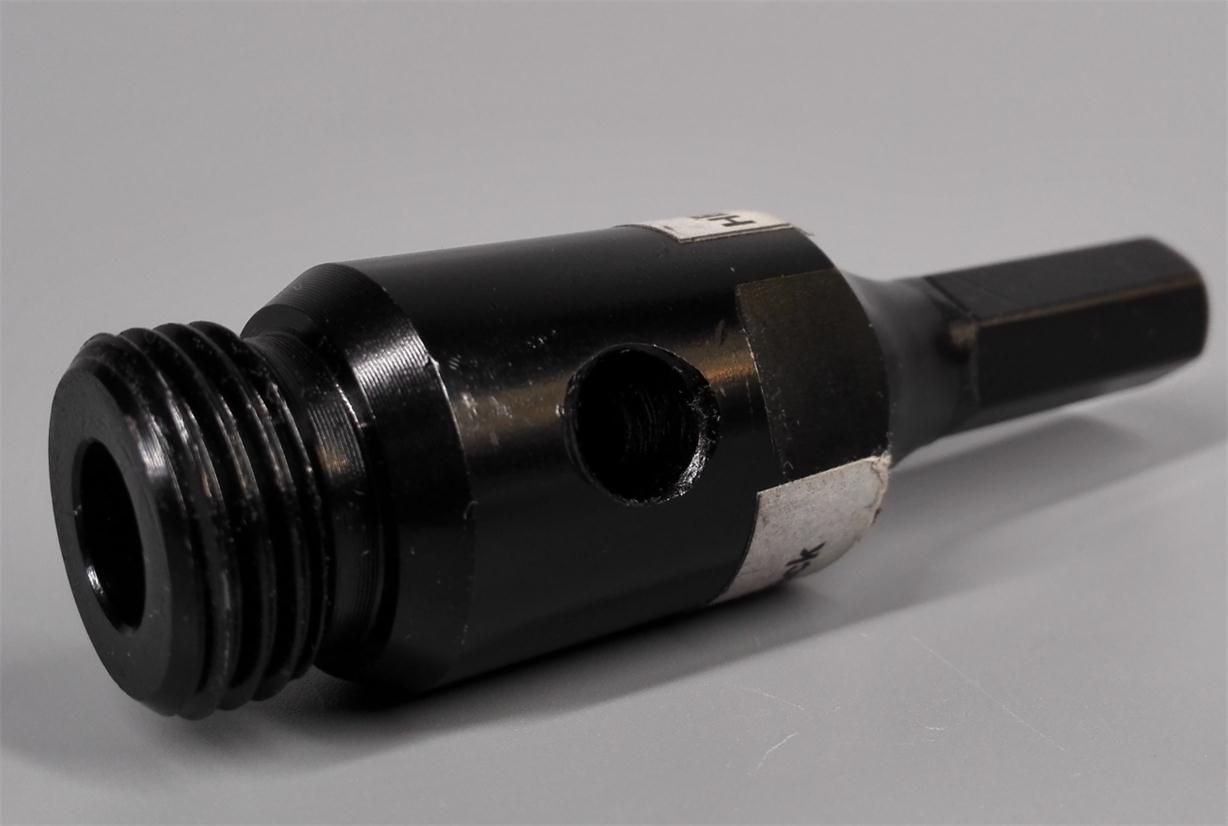

R701201+length |
|
Hexagon |
1/2" BSP |
88/100/115/120/200/ 240/300/400/500 |
|
R701601+length |
M16 |
|||
|
R701701+length |
M22 |
|||
|
R701801+length |
5/8-11" |
|||
|

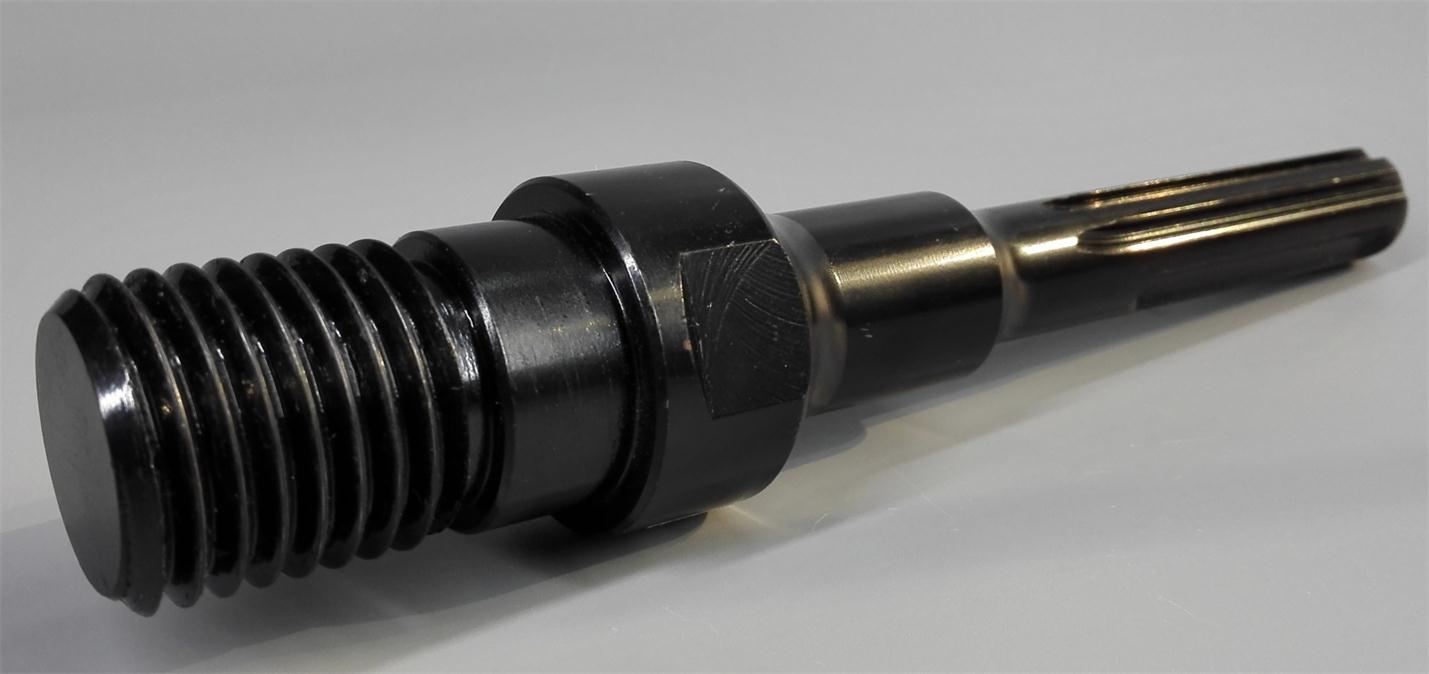

R601101+length |
|
SDS Max |
1-1/4"UNC |
200/240/300/400/500 |
|
R601201+length |
1/2" BSP |
100/115/120/200/240/ 300/400/500 |
||
|
R601601+length |
M16 |
|||
|
R601701+length |
M22 |
|||
|
R601801+length |
5/8-11" |
|||
|

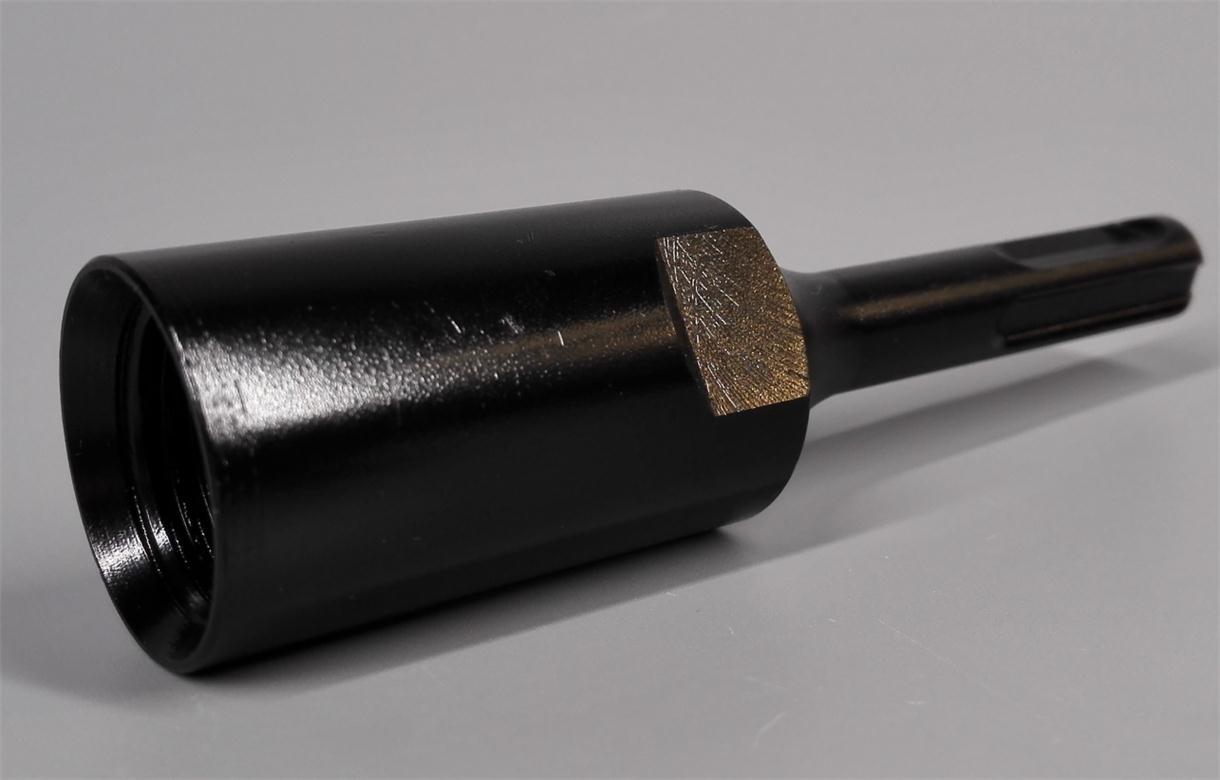

R501202100 |
|
SDS Plus |
1/2" BSP Female |
100mm |
|

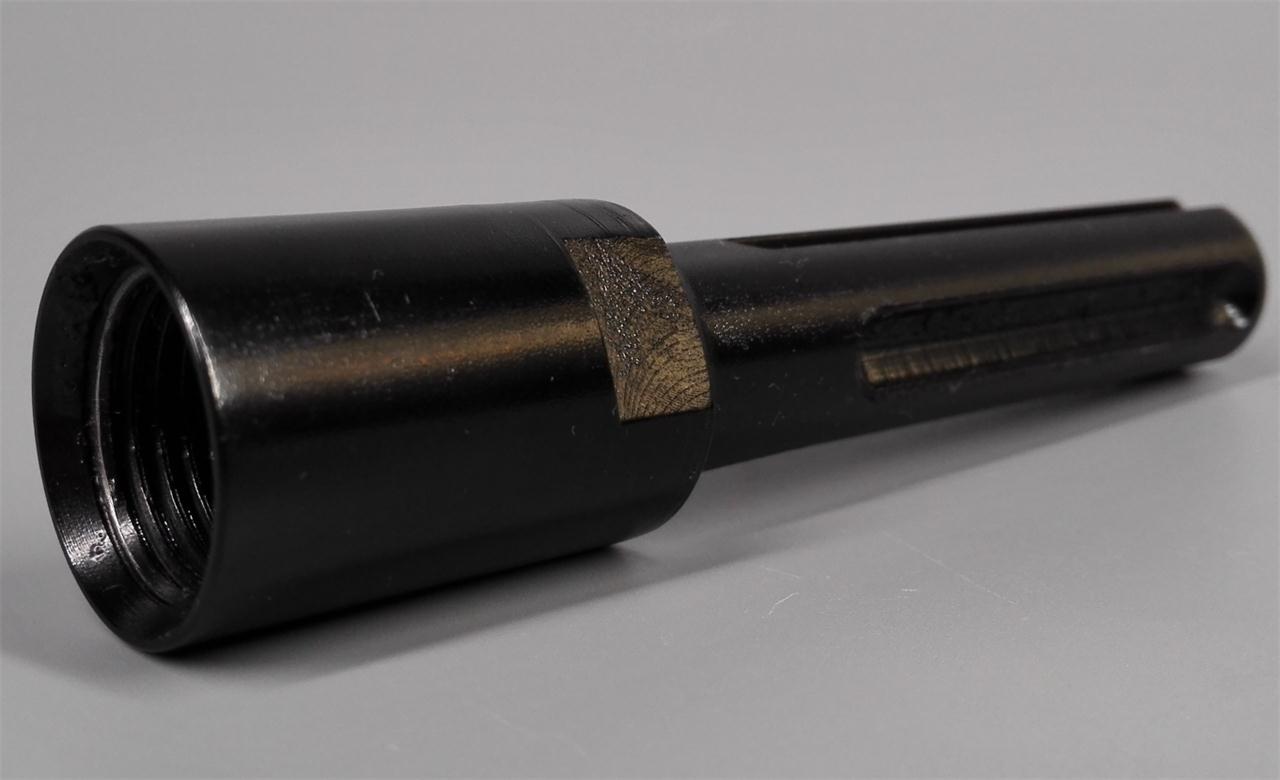

R601202100 |
|
SDS Max |
1/2" BSP Female |
100mm |
|
R701201100 |
|
Hexagon |
1/2" BSP Female |
100mm |
|

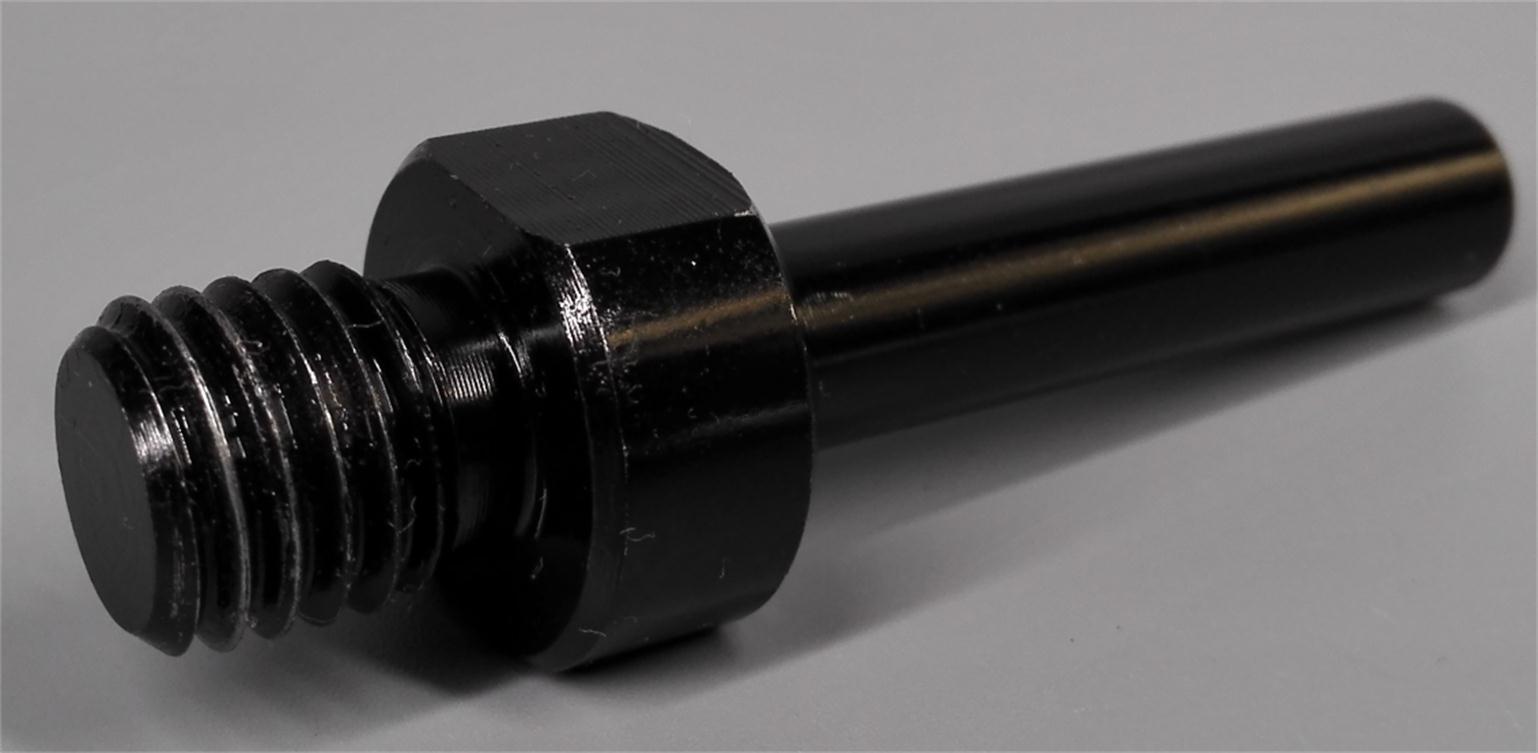

R80180170 |
|
Round Shank |
5/8"-11 |
70mm |
|
R80150170 |
|
Round Shank |
M14 |
70mm |
|

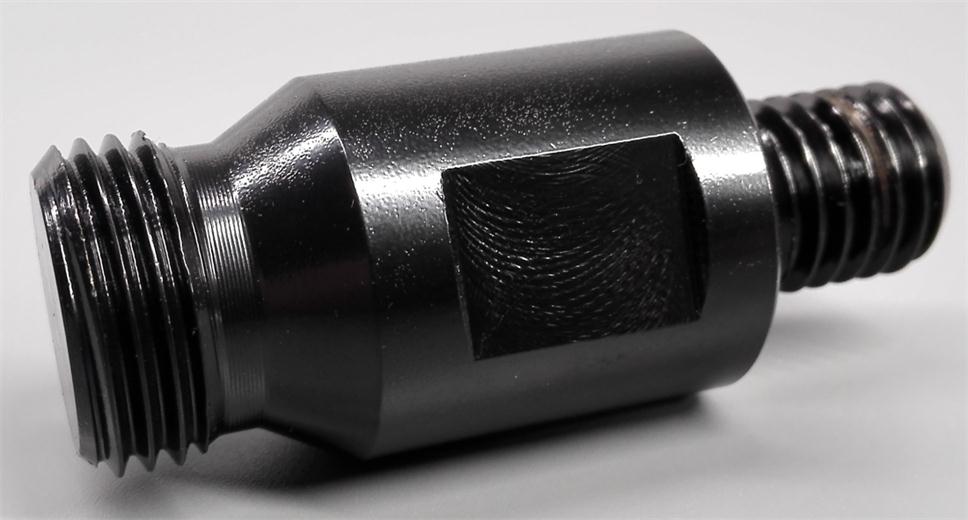

20150160 |
|
1/2"BSP |
M14 |
60mm |
|
|
|

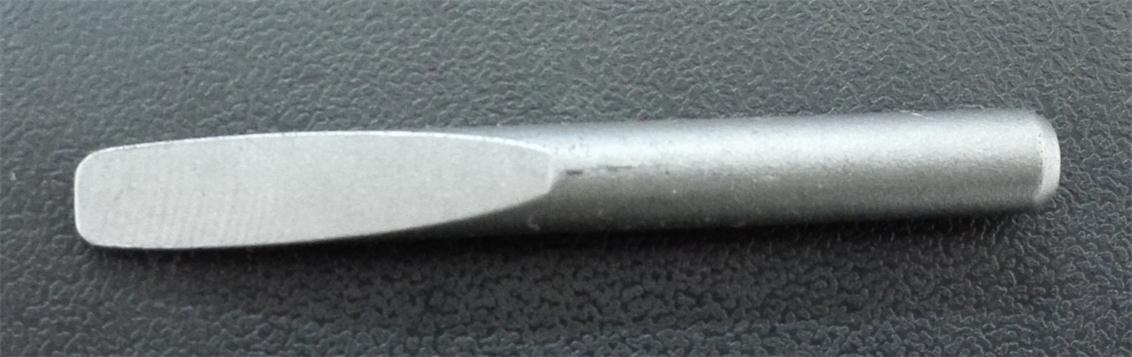

Drift Key |
70mm |
|
|
|
Taper Guide Rod |
220mm |
||
|
|
|

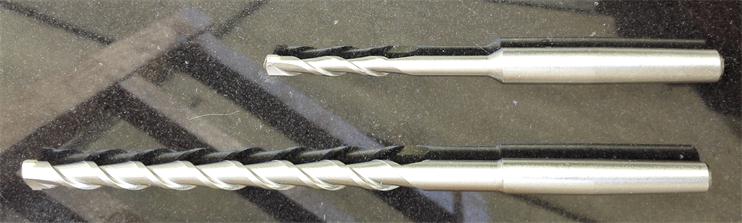

Taper Drill, Φ6.5mm |
120mm |
|
|
|
Taper Drill, Φ10mm |
200/300/450 |
||
|
|
Taper Drill, Φ13mm |
230mm |
||
Thread Code Explanation
|
Thread |
male |
female |
Thread |
male |
female |
|
1-1/4"UNC |
101 |
102 |
Hilti DD-BI |
H601 |
|
|
1/2"BSP |
201 |
202 |
Hilti DD-BL |
|
H702 |
|
SHIBUYA A-ROD |
301 |
302 |
Hilti DD-200 |
|
H802 |
|
CRI28 Pixie |
401 |
402 |
Hilti DD-CT2 |
H901 |
|
|
M14 |
501 |
502 |
SDS-Plus |
R501 |
|
|
M16 |
601 |
602 |
SDS-Max |
R601 |
|
|
M22 |
701 |
702 |
Hexagon |
R701 |
|
|
5/8"-11 |
801 |
802 |
Round shaft |
R801 |
|
