Segment

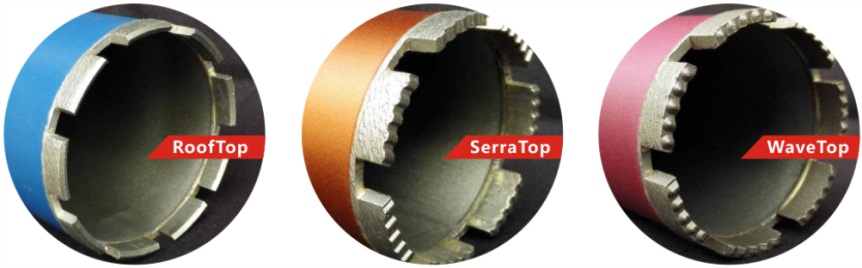

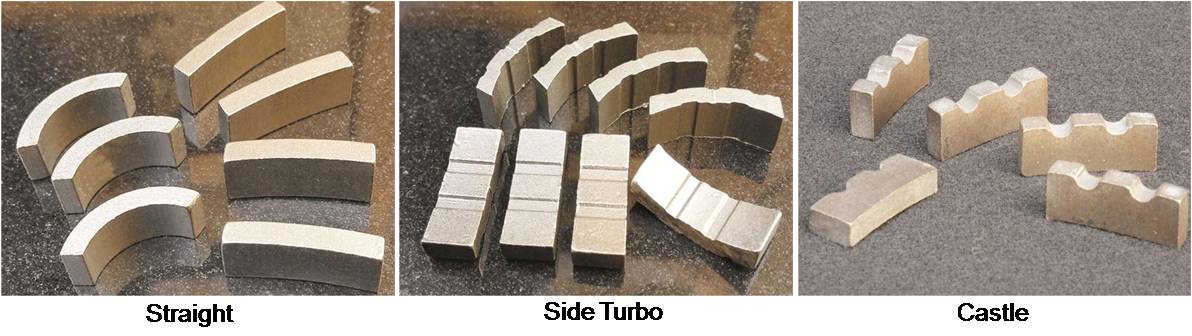

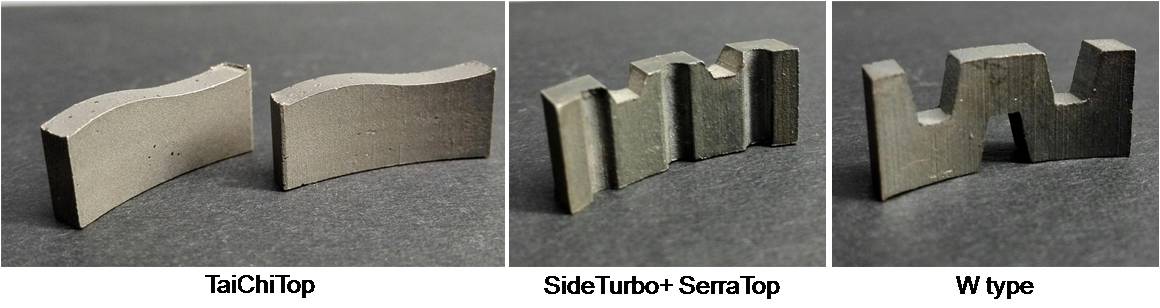

Diamond Segments for Core Bit Retipping
Specification:
|
Drill Bits Dia. ( mm） |
Drill Bits Dia. ( inch, up to） |
Segt. size(mm) |
|
LxTxH |
||
|
Φ25-36 |
1-3/8" |
15x3.0x10 |
|
Φ38-46 |
1-3/4" |
20x3.5x10 |
|
Φ51-92 |
3-1/2" |
24x3.5x10 |
|
Φ96-132 |
5-1/4" |
24x4.0x10 |
|
Φ140-180 |
7" |
24x4.0x10 |
|
Φ182-254 |
10" |
24x4.5x10 |
|
Φ270-355 |
12" |
20x5.0x10 |
|
Φ400-500 |
20" |
20x5.0x10 |
|
Φ500-600 |
24" |
20x5.0x10 |
* For larger size above 600mm, please contact with us.
Feature:
* European technology, unique formula, high quality raw material brings excellent drilling performance.
* Different bonds suit both brazing and laser welding.
* Supreme grade, Premium grade, Standard grade and Economical grade are available.
Classification:
Supreme Grade- Suit for drilling moderate to high steel reinforced concrete (C40 or above) ,Used on all types of drill rigs,HF or hydraulic drill unit.
Premium Grade- Suit for drilling light to moderate steel reinforcement (up to C40) ,Used on all types of drill rigs,HF or hydraulic drill unit.
Standard Grade- Suit for drilling light to moderate steel reinforcement (up to C40) ,Used on all types of drill rigs,HF or hydraulic drill unit.
Economical Grade- Suit for drilling normal concrete and brick/block or mixture,Used on hand held drilling machine or drill rigs.
