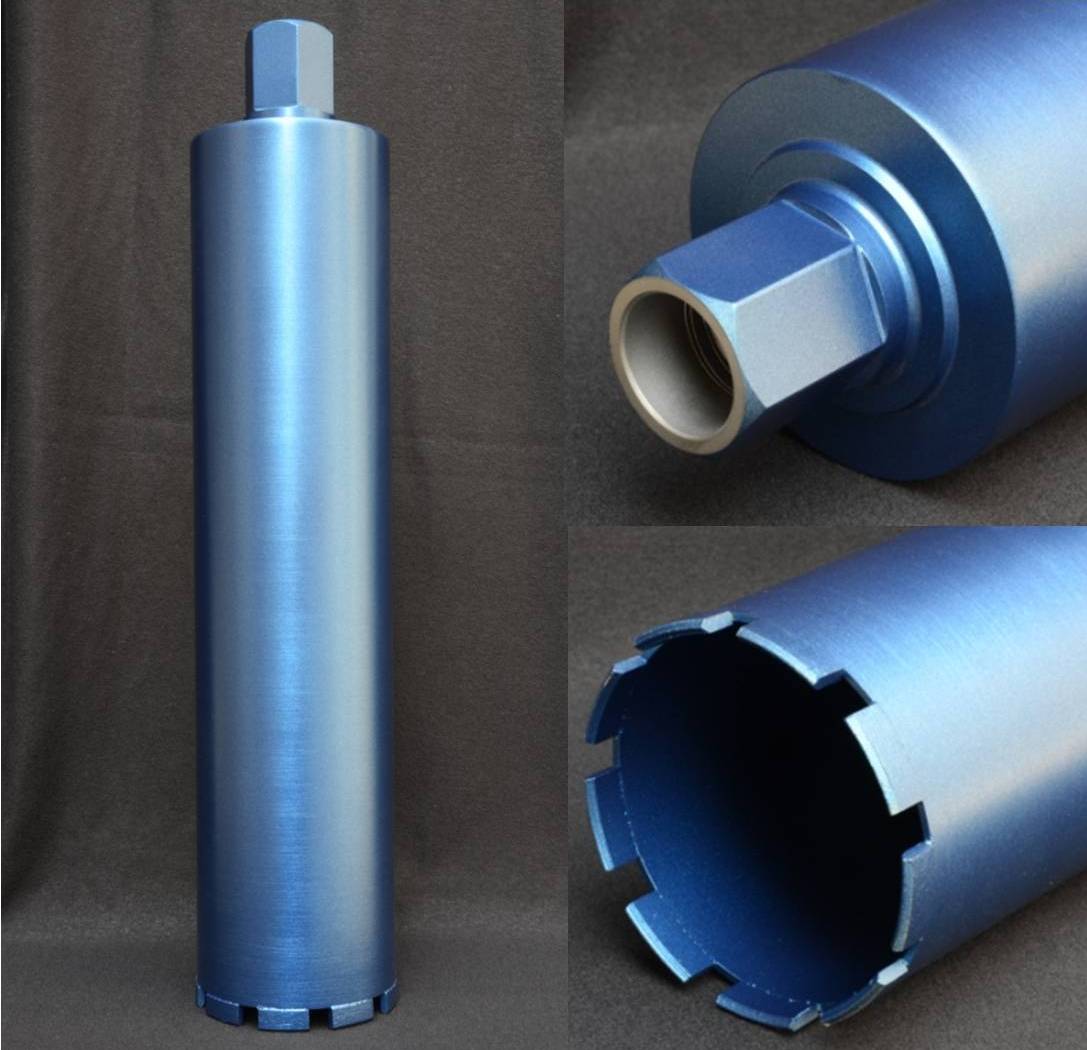

- Wet Core Bit (LA)
- YOUR POSITION:HOME > Products > Diamond Drilling > Wet Core Bit (LA) > Views
Supreme Grade (Sky Blue)
Total Length: 450mm
Connection: 1-1/4"UNC or G 1/2"
Segment Type: RoofTop
Series: LASER Supreme Grade (LUG)
|
D（mm) |
D（Inch) |
Seg.Size (mm) |
Segs.QTY (pcs) |
D（mm) |
D（Inch) |
Seg.Size (mm) |
Segs.QTY (pcs) |
|
Φ25 |
1" |
15x4.0x10 |
3 |
Φ108 |
4-1/4" |
24x4.0x10 |
10 |
|
Φ27 |
1" |
15x4.0x10 |
3 |
Φ116 |
4-1/2" |
24x4.0x10 |
10 |
|
Φ30 |
1-1/8" |
15x4.0x10 |
3 |
Φ120 |
|
24x4.0x10 |
10 |
|
Φ32 |
1-1/4" |
15x4.0x10 |
4 |
Φ127 |
5" |
24x4.0x10 |
11 |
|
Φ36 |
1-3/8" |
15x4.0x10 |
4 |
Φ132 |
5-1/4" |
24x4.0x10 |
11 |
|
Φ38 |
1-1/2" |
20x3.5x10 |
4 |
Φ140 |
|
24x4.0x10 |
11 |
|
Φ42 |
1-5/8" |
20x3.5x10 |
4 |
Φ152 |
6" |
24x4.0x10 |
12 |
|
Φ46 |
1-3/4" |
20x3.5x10 |
5 |
Φ159 |
6-1/4" |
24x4.0x10 |
12 |
|
Φ51 |
2" |
24x3.5x10 |
5 |
Φ168 |
6-1/2" |
24x4.0x10 |
12 |
|
Φ56 |
2-1/4" |
24x3.5x10 |
5 |
Φ180 |
7" |
24x4.0x10 |
14 |
|
Φ63 |
2-1/2" |
24x3.5x10 |
6 |
Φ200 |
8" |
24x4.5x10 |
14 |
|
Φ66 |
|
24x3.5x10 |
6 |
Φ220 |
|
24x4.5x10 |
15 |
|
Φ71 |
2-3/4" |
24x3.5x10 |
7 |
Φ230 |
9" |
24x4.5x10 |
15 |
|
Φ76 |
3" |
24x3.5x10 |
7 |
Φ245 |
|
24x4.5x10 |
15 |
|
Φ83 |
3-1/4" |
24x3.5x10 |
7 |
Φ254 |
10" |
24x4.5x10 |
16 |
|
Φ89 |
3-1/2" |
24x3.5x10 |
8 |
Φ270 |
|
20x5.0x10 |
16 |
|
Φ96 |
|
24x3.5x10 |
8 |
Φ300 |
12" |
20x5.0x10 |
17 |
|
Φ102 |
4" |
24x4.0x10 |
9 |
Φ355 |
14" |
20x5.0x10 |
18 |
* The Straight, Turbo segment are available upon request.
* The other type of connection is available upon request.
Feature:
1) Pure cobalt powder bond, supreme diamond crystals,
vacuum hot press sintered segments.
2) Complete barrel guarantee a good concentricity.
3) The acid pickling and automatic painting to the drill
body brings a neat appearance and elegance.
4) Excellent drilling speed and long extension meter.
Application:
1) Suit for drilling moderate to high steel reinforced
concrete (C40 or above) i.e, mansion building, military facilities, subway,
tunnel, bridge, wharf, airport and other projects.
2) Used on all types of drill rigs,HF or hydraulic drill
unit.
