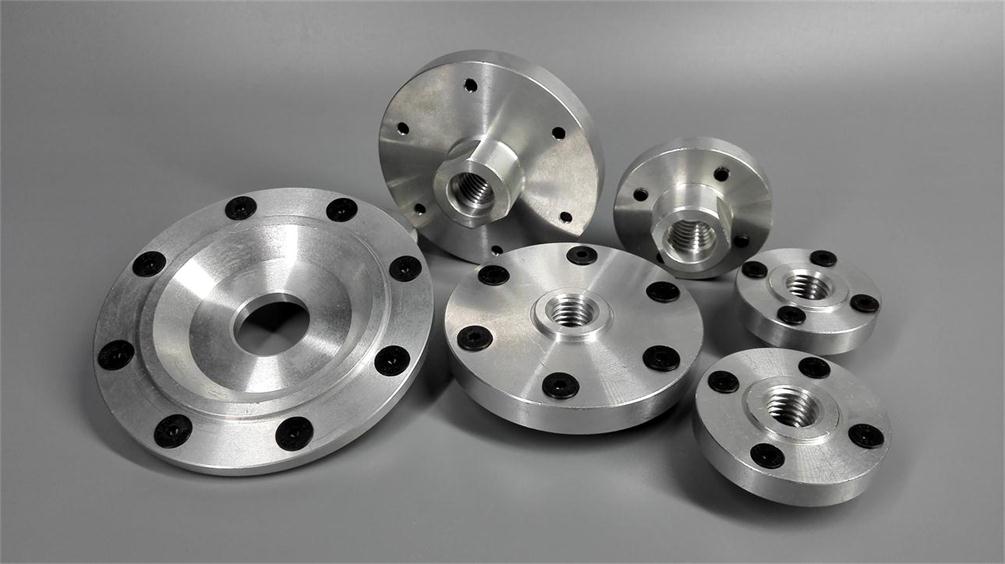

FLANGES

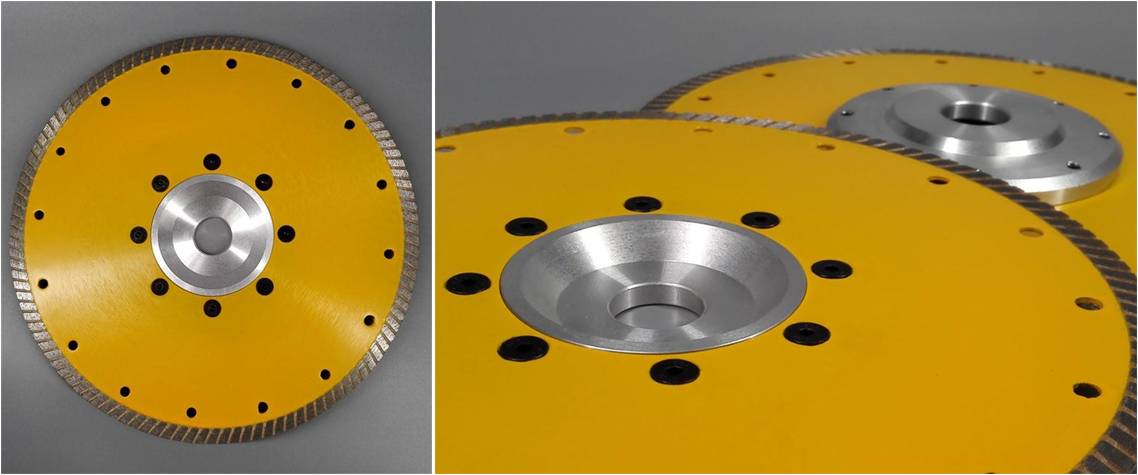

Coaxial Flanges
-For flush cutting
Specification:
Item Code
Flange size (mm)
Mounting dimensions (mm)
Bore size (mm)
Fixing screws
Suit for Sawblade Size (mm)
AF977022
97
70
22.23
M5x10, 8 pcs
Φ230
AF977014
97
70
M14
M5x10, 8 pcs
Φ230
AF972214
97
22.23
M14
M5x10, 8 pcs
Φ230
AF822214
82
22.23
M14
M5x10, 8 pcs
Φ230/Φ180
AF802214
80
22.23
M14
M5x10, 6 pcs
Φ180
AF775022
77
50
22.23
M5x10, 6 pcs
Φ180
AF502214
50
22.23
M14
M5x10, 4 pcs
Φ150/Φ125
AF452214
45
22.23
M14
M4.5x8, 4 pcs
Φ115/Φ105
Features:
* The mounting neck's height is decided by the saw blade's steel thickness, different height is available.
* Flanges were made of Aluminum alloy, light but durable.
* Steel flanges is also available upon request.
