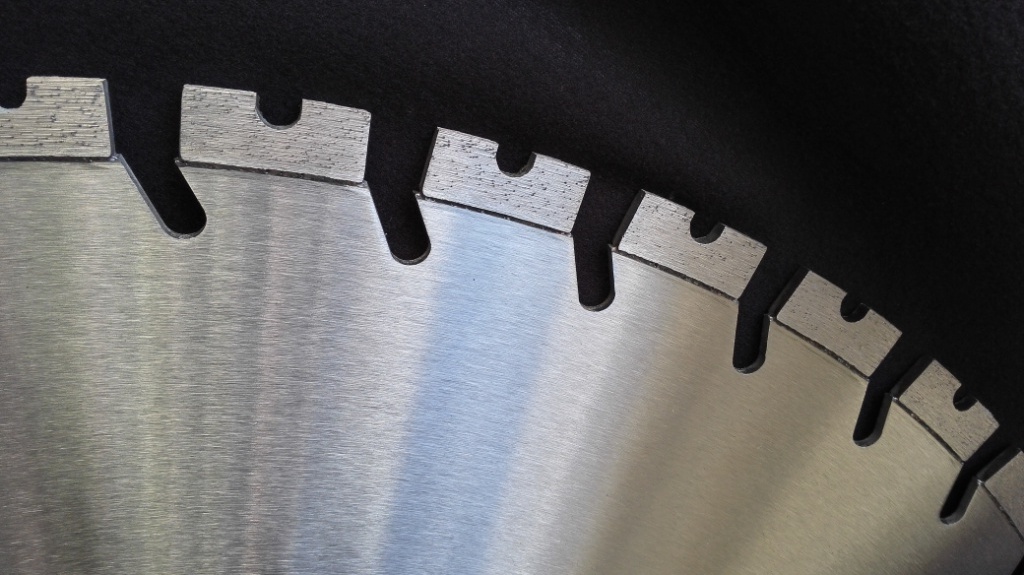

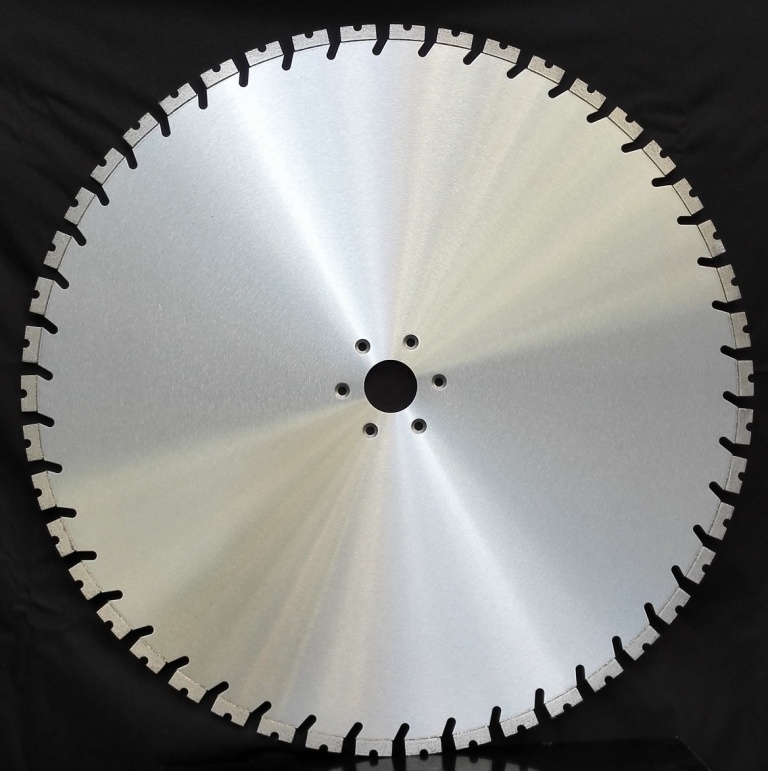

Wall saw blade-Laser
|
Item No. |
D(Inch) |
D(mm) |
A (mm) |
Segment Size (mm) |
Seg. No. |
|
WSA60012 |
24" |
600 |
60 |
40x4.5x12 |
36 |
|
WSA65012 |
26" |
650 |
60 |
40x4.5x12 |
40 |
|
WSA70012 |
28" |
700 |
60 |
40x4.5x12 |
40 |
|
WSA75012 |
30" |
750 |
60 |
40x4.5x12 |
42 |
|
WSA80012 |
32" |
800 |
60 |
40x4.8x12 |
46 |
|
WSA90012 |
36" |
900 |
60 |
40x4.8x12 |
52 |
|
WSA100012 |
40" |
1000 |
60 |
40x4.8x12 |
58 |
|
WSA120012 |
48" |
1200 |
60 |
40x5.0x12 |
68 |
|
WSA140012 |
56" |
1400 |
60 |
40x5.0x12 |
86 |
|
WSA160012 |
64" |
1600 |
60 |
40x5.0x12 |
92 |
* Segment height 10mm is also available.
* Other arbor size is available upon
request.
Application:
** Suit for dry or wet cutting reinforced concrete wall,
brick wall etc. the maximum cutting depth is 700mm.
** Saw blade range from 600mm to 1600mm diameter, can be
used on electrical, HF and Hydraulic saws from 10 to 60 horsepower.
Feature:
** Special bond formula (Metal-opposed Element added),
ensure extremely cutting speed, especially when cutting steel in side of the
concrete.
* *Special alloy layer of the segment, guarantee the
bending strength, no loss of the segment.
* *Various segment type （Straight, Spilt, Turbo) are available, or made to order upon customers request.
