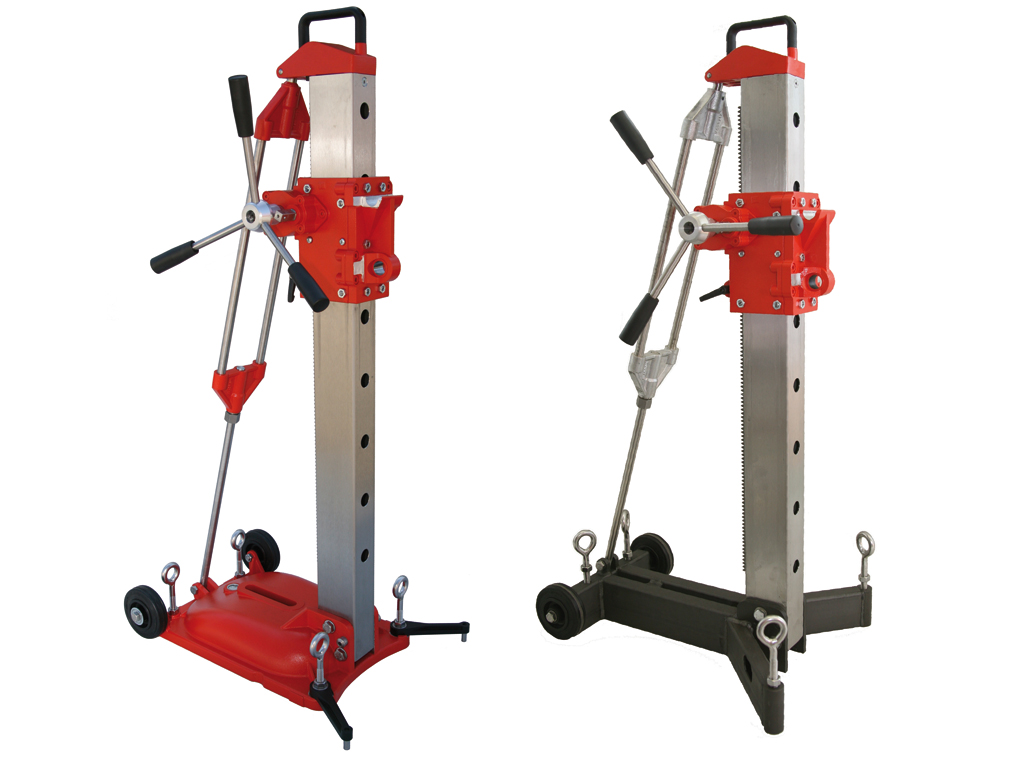

KS50 (S)

Diamond Drill Rig

Technical data：

Versions：

Advantages：

   * Solid, torsion-resistant drill column made of stainless steel.

   * Extremely abrasion resistant and low-maintenance slide ways and bearings made of a special compound material.

   * Feed carriage slides absolutely free from backlash.

   * Quick change plate (accessory) for fastening the drilling machine.

   * Fine feed for increasing the feed power.

   * Combined rig foot (KS50), can be fixed with dowels and vacuum.

   * Gear rack made of wear resistant steel.

   * Ergonomically designed hand wheel, can be fixed left and right without tools, easy selection of the operating side.

   * Level (KS50) and adjusting screws for precise alignment of the rig.

   * Wheels and two adjustable swing feet (KS50).

   * Vacuum fittings and gasket as accessory.

   * Cost-saving versions KS 50 E and KS 50 ES available.

Applications:

   * The drill rig KS 50 is characterized by a wide range of applications. Bore holes with medium and large diameter can be drilled fast and safe in the entire field of the construction industry.

   * The combined rig foot with vacuum fixture can be used for special surfaces, e.g. tiles.

   * Recommended for WEKA diamond core drilling machines type DK26, DK32, SR25, SR38, DK42 and DK52.
