YOUR POSITION:HOME > Products > Equipment (WEKA Germany) > Drilling Machine > Stand core drill motor > Views

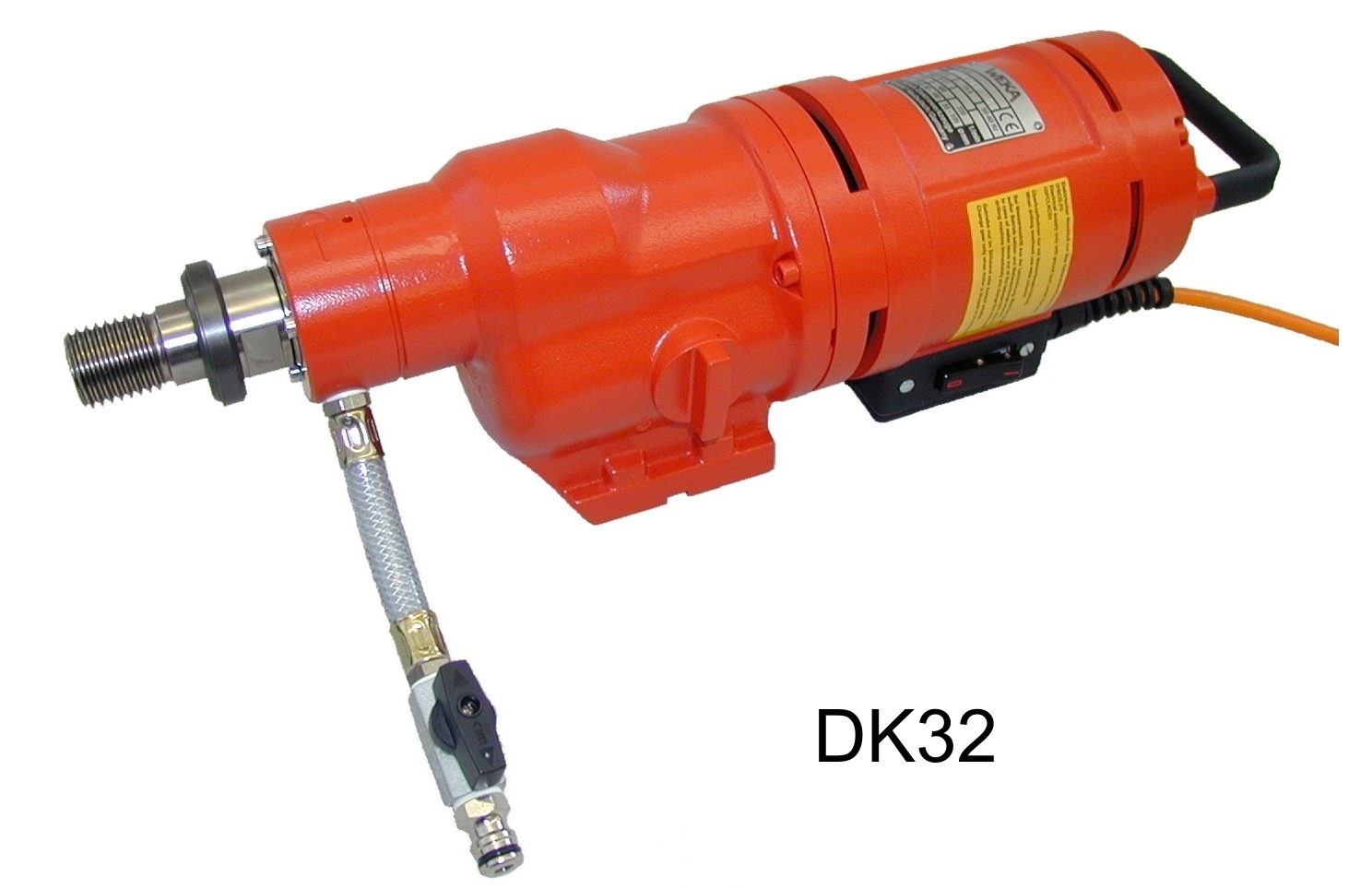

DK32

CREATETIME:2016/02/12 14:01:57  VIEW:


Rated Voltage

V

230

Nominal power

W

3200

Output power

W

2300

Rated speed

1/min

230/460/720

Total length

mm

488

Weight without cable

kg

11.9

Drilling Ø concrete c.

mm

55-350

Tool fixture

1-1/4”UNC

Foot fastening

Standard 4 x M8 with groove 10 x 4,3

Advantages:

* High-performance, air-cooled motor with 3200 W.

* 3-speed-gear with oil bath lubrication, oil pump and overload clutch.

* Motor protection and soft start by means of the Intellitronic.

* Antifriction-Element for easy loosening of the drill bit.

* Tough and reliable design as a result of the full metal housing, compact design.

* Available with a higher revolution speed in the version DK32 S.


Applications:

* Wet drilling in concrete, masonry and stone.

* Through-holes for cables, cable trays and pipes.

* Wet drilling in ceilings, floors and walls.

* Stitch drilling of through-holes in plumbing, and air conditioning installations.

* Ventilation openings.

* Corner holes for sawing.


  • PROV:DK42
  • NEXT:DK26
