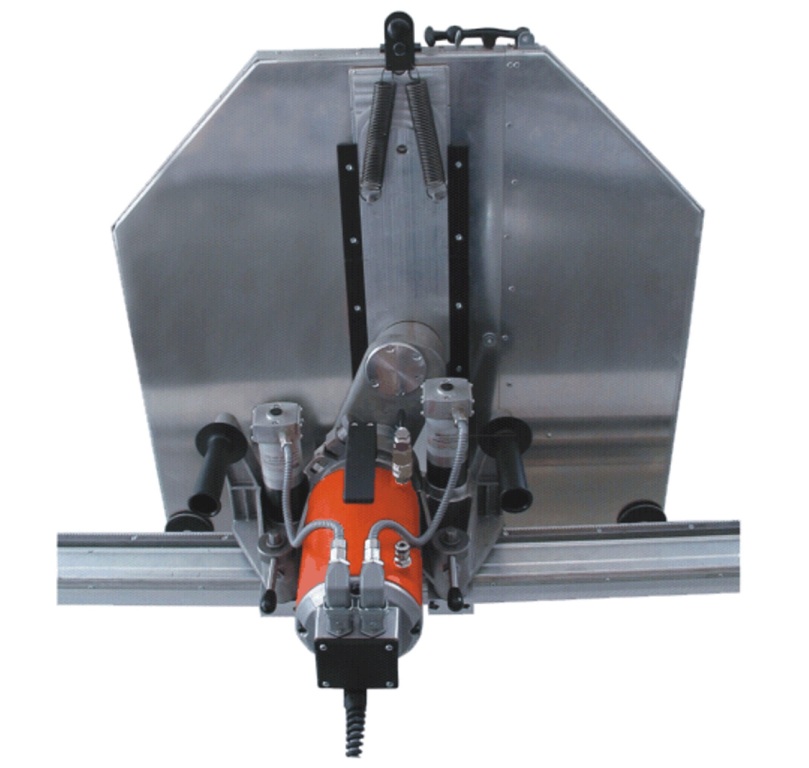

WS75
|
WS75 |
WS75H |
||
|
Nominal power |
W |
6000 |
11000 |
|
Output power |
W |
4800 |
9000 |
|
Rated speed of the spindle |
1/min |
1400 |
1000-2000 |
|
Saw blade diameter |
mm |
750/800/900 |
750/800/900 |
|
Cutting depth |
mm |
320/345/395 |
320/345/395 |
|
Feed power – longitudinal and dip feed |
W |
2000 |
2000 |
|
Speed – longitudinal feed |
1/min |
0-3 |
0-3 |
|
Speed – dip feed |
1/min |
0-1 |
0-1 |
|
Weight – saw motor |
kg |
17 |
13.5 |
|
Weight – basis without saw motor |
kg |
19 |
19 |
|
Blade fixture |
mm |
25.4 |
25.4 |
|
Saw flange for flush cut |
TK90, 6xM8 |
TK90, 6xM8 |
Advantages:
* Very powerful,
water-cooled 3-phase motor with 6 kW or extremely strong high frequency
motor with 11 kW.
* High feed power
of the longitudinal and dip feed.
* Motor can be
disconnected from the machine basis without any tools.
* Variable spindle
speed.
* Gear with oil
bath lubrication and overload clutch.
* Torsion resistant
track with wear resistant taper gibs made of stainless steel.
* Splash water
proof according IP 55.
* Blade guard for
flush cutting as accessory.
Applications:
* Cutting of
concrete walls and masonry up to 395 mm.
* Controlled
demolition during refurbishment.
* Flush cutting.
